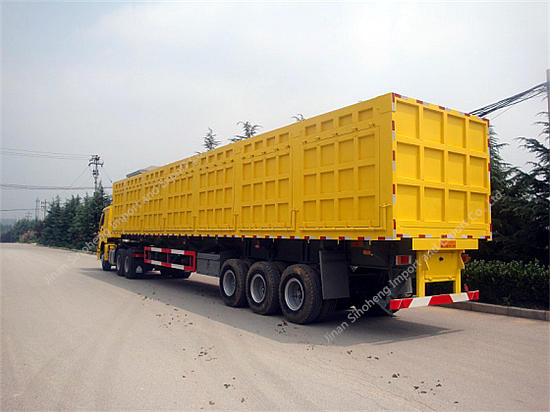

Side Dump Semi trailer 70Ton
Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . All the kinds of semi trailers ( from light loading semi trailers to heavy loading semi trailers ) , we all can customize them according to customer’s special demands ( required dimensions , loading capacity etc ) .
| Side Dump Semi-trailer 70Ton | |
| Item | Side Dump Semi-trailer-70T |
| Tare Weight | 12000kg |
| Pay load | 70000kg |
| Overall dimension(mm) | 13000mm×2500mm×3300mm |
| Chassis Specification | |
| Chassis frame | I beam,Q345B, high tensile steel |
| Axles | FUWA brand 16 T /PER , 3 AXLES |
| Tire | 12R20,radial tubeless tyre, 12pieces |
| Spare tyre | One set tyre,including one carrier |
| Rim | 8.5 12pieces |
| Suspension | Germany design mechanical suspension |
| Spring leaf | 13 pieces |
| King pin | JOST 2″ |
| Landing gear | JOST brand,two speed, manual |
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tank |
| Accessories | One piece tool box |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Dump body | |
| Side wall height | 2200mm |
| Cylinders | 5+1 hydraulic cylinders 5+1 |
| Fence body material | Q345 steel |
| Platform thickness | 4mm |
| Sidewall thickness | 1.5mm |
If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
