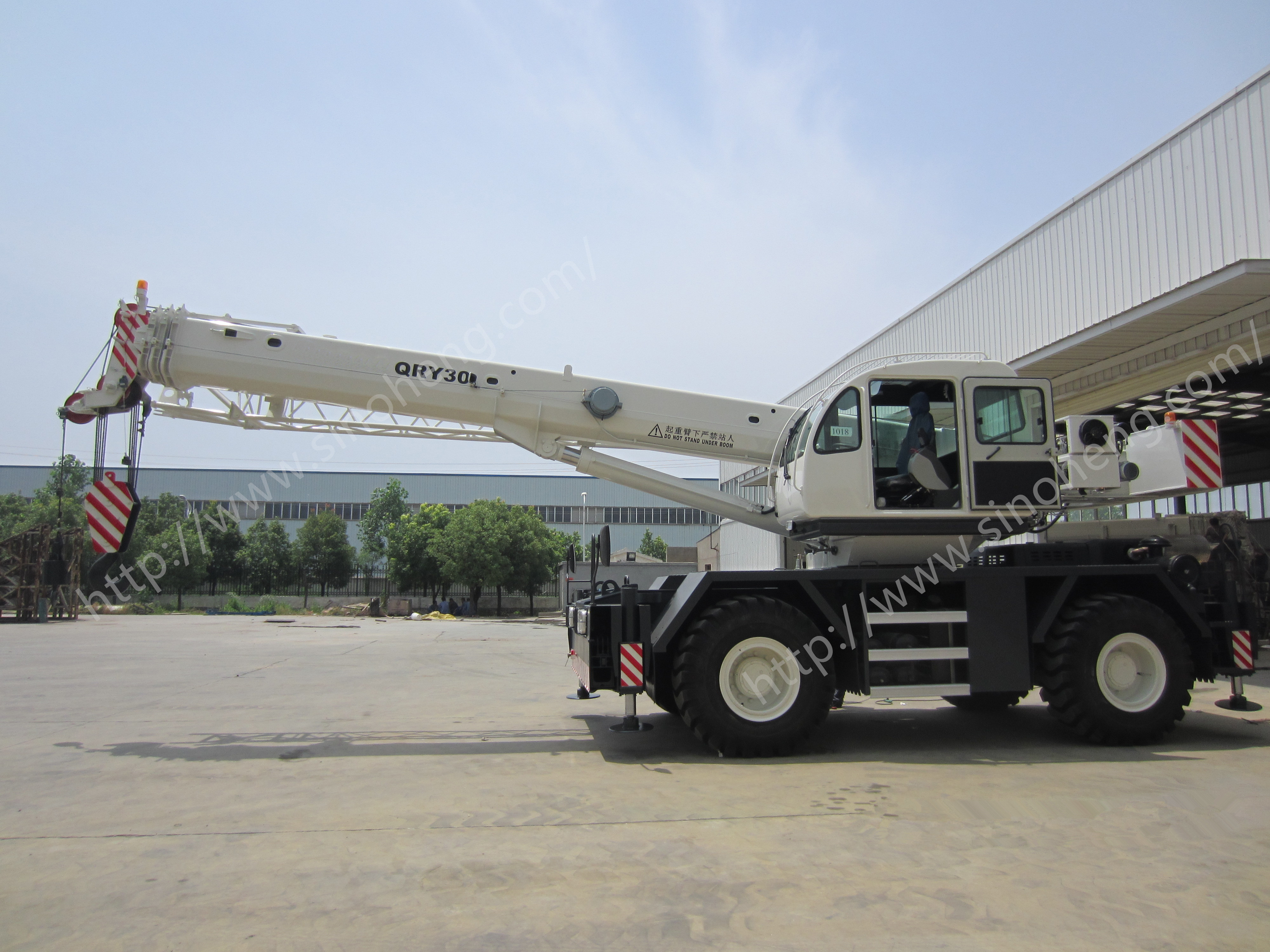

RT30 rough terrain crane
RT30 rough terrain crane
Product advantages
- Safe and reliable electrical control system
- Double pump confluence technology realize compound action improve work efficiency
- Emergency steering power device(Emergency pump): If there is an emergency that the engine can not be started, the crane can be dragged by other vehicles. The emergency pump is driven by battery and supplies power to power cylinder.
- Rational design of whole crane, humanization design new upgrade. The design of the whole crane is more reasonable than other kinds of cranes, saving raw materials and satisfying performance requirements. New type cab, adjustable suspension seat, air conditioner, air motive shed, electron-hydraulic proportional handle and the push-button control, large color display and new dashboard, electric control H outrigger, electric control engine, electric control hydraulic torque converter gearbox, brake steering drive axle, electric-hydraulic control, easily operation, safe and reliable.
|
Category |
Items |
Units |
Parameters |
||
| Outline Dimensions | Overall length |
mm |
11750 |
||
| Overall width |
mm |
2980 |
|||
| Overall height |
mm |
3600 |
|||
| Axle base |
mm |
3600 |
|||
| Tyre tread |
mm |
2500 |
|||
|
Weight |
Dead weight in travel state |
Kg |
29500 |
||
|
|
Axle load | Front axle |
Kg |
14430 |
|
|
|
|
Rear axle |
Kg |
15070 |
|
|
Power |
Engine rated output |
Kw/(r/min) |
162/2200 |
||
|
|
Engine rated torque |
N.m(r/min) |
843/1400-1500 |
||
|
Travel |
Travel speed | Max. travel speed |
Km/h |
40 |
|
|
|
|
Min. stable travel speed |
Km/h |
1 |
|
|
|
Turning radius | Min. turning radius |
m |
5.1 |
|
|
|
|
Min. turning radius for boom head |
m |
9.25 |
|
|
|
Min. ground clearance |
mm |
400 |
||
|
|
Approach angle |
° |
21 |
||
|
|
Departure angle |
° |
21 |
||
|
|
Braking distance(at 30km/h) |
m |
≤9 |
||
|
|
Max. Gradeability |
% |
55 |
||
|
|
Max. outside noise during accelerating |
dB(A) |
86 |
||
|
Category |
Items |
Units |
Parameters |
||||
| Lifting performance | Max. total rated lifting load |
t |
30 |
||||
| Min.. rated working radius |
m |
3 |
|||||
| Turning radius at swing table tail |
m |
3.525 |
|||||
|
|
Max. load moment |
Base boom |
KN.m |
920 |
|||
|
|
|
Fully extended boom |
KN.m |
560 |
|||
|
|
|
Fully extended boom + Jib |
KN.m |
380 |
|||
|
|
Outrigger span | Longitudinal |
m |
6.08 |
|||
|
|
Lateral |
m |
6.5 |
||||
|
|
Lifting height | Boom |
m |
10 |
|||
|
|
Fully extended boom |
m |
27.78 |
||||
|
|
Fully extend boom+Jib |
m |
34.3 |
||||
|
|
Boom length | Boom |
m |
9.18 |
|||
|
|
|
Fully extended boom |
m |
27.78 |
|||
|
|
|
Fully extend boom+Jib |
m |
35.1 |
|||
|
|
Jib offset angle |
° |
0、30 |
||||
|
Working speed |
Derricking time | Boom raising time |
s |
75 |
|||
|
|
Boom descending time |
s |
75 |
||||
|
|
Telescoping time | Boom fully extend time |
s |
75 |
|||
|
|
Boom fully retracting time |
s |
50 |
||||
|
|
Max.swing speed |
r/min |
2.0 |
||||
|
|
Outrigger telescoping time | Outrigger beam | Extending synchronously |
s |
25 |
||
|
|
Retracting synchronously |
s |
15 |
||||
|
|
Outrigger jack | Extending synchronously |
s |
25 |
|||
|
|
|
Retracting synchronously |
s |
15 |
|||
|
|
Hoisting speed | Main winch (No load) |
m/min |
80 |
|||
|
|
Auxiliary winch (No load) |
m/min |
80 |
||||
