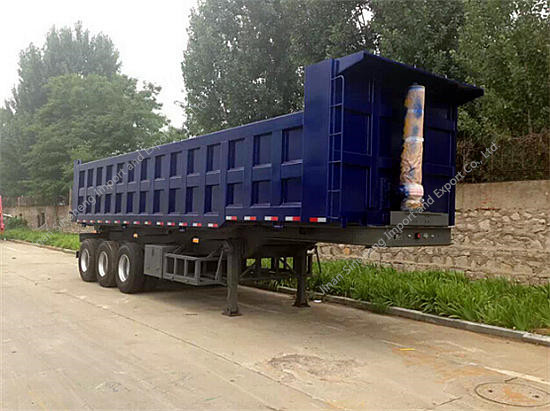

Rear Dump Semi trailer 40Ton
Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . All the kinds of semi trailers ( from light loading semi trailers to heavy loading semi trailers ) , we all can customize them according to customer’s special demands ( required dimensions , loading capacity etc ) .
| Rear Dump Semi-trailer 40Ton | |
| Tipper Semi-Trailer (40T) | |
| Tare Weight | 11000kgs |
| Pay Load | 29000kgs |
| Total Weight | 40000Kgs |
| Overall Length | 9300mm |
| Overall Width | 2465mm |
| Overall Height | 3726mm |
| Wheel track | 1840mm |
| Wheelbase | 4680mm+1310mm+1310mm |
| DUMPER BODY | |
| Volume | 23m3 |
| Inner dimensions (L x W x H): | 8400mmx2300mmx1160mm |
| Floor | 8mm thickness |
| Side wall | 6mm thickness |
| Front wall | 8mm thickness |
| SPECIFICATION | |
| Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height, Top Flange 16mm,width 140mm; Middle Flange 8mm ;Bottom Flange 20mm,width 140mm |
| Hydraulic system | One set of HYVA FC191-5-06180 cylinder |
| Axle | Three Units of BPW 12Ton axle (optional for BPW copy or American style) |
| Suspension | A couple of FUWA (brand) mechanical tri-axle suspension, optional for air suspension |
| Leaf Spring | Six sets of reliable local brand, 8-piece leaf spring,16x90mm |
| King Pin | One unit of 90# standard kingpin |
| Landing Gear | Two-speed ,manual operation, heavy duty landing gear |
| Wheel Rim | 13 units of 8.25R22.5 rims |
| Tyre | 13 units of 11R22.5 tubeless tyre |
| Pneumatic Braking System | Two unit of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber ,two unit of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. |
| Electrical System | One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; two sets of reliable ,local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of 6-core standard Cable. |
| Painting | Sand blasting before painting; one coats of primer, anti corrosion; two coat of finish painting; color advised by client |
| Accessory | One box with a set of standard trailer tool |
If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
