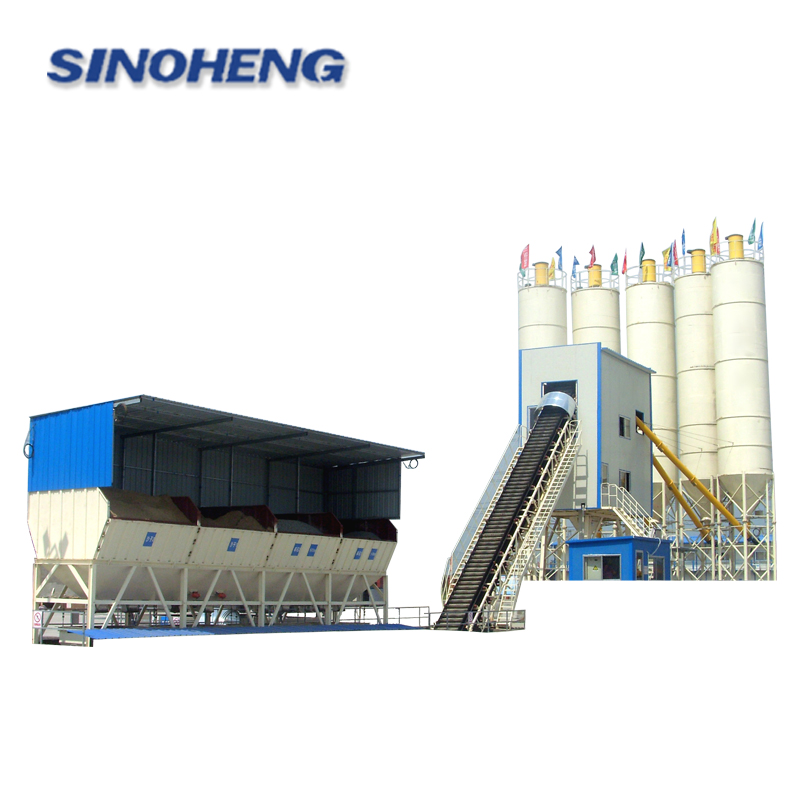

HZS90BE 90m3/h Belt conveyor concrete mixing plant
HZS90BE 90m3/h Belt conveyor concrete mixing plant
1. HZS Stationary Concrete Batching Plant is also named ready mix concrete plant, mainly composed of twin shaft mixer, material weighing system, conveying system, material storage system, control system and steel structure.
2. It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
3.HZS series stationary concrete batching plant is widely used in big or medium building projects, road and bridges projects, precast concrete plants, etc. It is an ideal choice for producing commercial concrete.
4.HZS has two feeding ways. One is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is often used for higher than 60m3 per hour output production.
5.For export, we adopt full automatic control system for our stationary concrete mixing plant. It is PC+PLC control, which can vividly display the production process on the screen, so that the operator can monitor whole process all the time.
Features
| Model | HZS60BE | HZS90BE | HZS120BE | HZS180BE | |
| Theoretical productivity(m³/h) | 60 | 90 | 120 | 180 | |
| Mixer | Model | JS1000 | JS1500 | JS2000 | JS3000 |
| Power(kW) | 2×18.5 | 2×30 | 2×37 | 2×55 | |
| Discharge capacity(m³) | 1 | 1.5 | 2 | 3 | |
| Max.Agg.size(Gravel/pebble mm) | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | |
| Agg.bins | Volume (m³) | 12 | 12 | 20 | 20 |
| Belt conveyor capacity (kW) | 300 | 450 | 600 | 800 | |
| Scales capacity and accuracy | Aggregate (kg) | 2500±2% | 3000±2% | 4x(2000±2%) | 4x(3000±2%) |
| Cement (kg) | 500±1% | 800±1% | 1000±1% | 1500±1% | |
| Fly ash (kg) | 150±1% | 200±1% | 400±1% | 600±1% | |
| Water (kg) | 200±1% | 300±1% | 400±1% | 600±1% | |
| Additive (kg) | 20±1% | 30±1% | 40±1% | 60±1% | |
| Discharging height (m) | 4 | 4 | 4 | 4 | |
| All specification is subject to modification! | |||||
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
