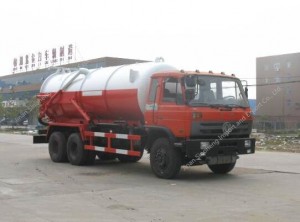

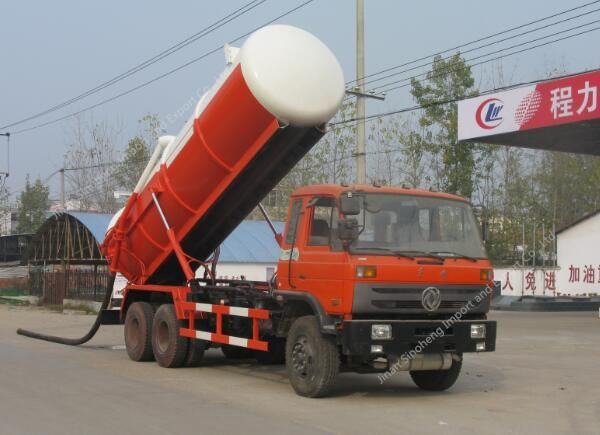

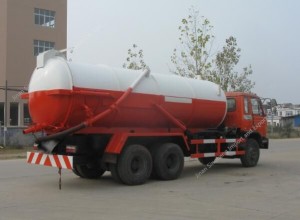

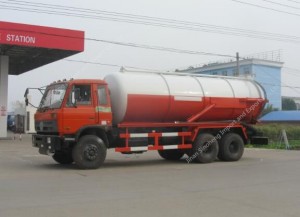

Dongfeng 6×4 sewage suction truck (16m3)
Sewage suction truck is collecting, cleaning up pollution car transport, sewage sludge, and avoid the secondary pollution of sanitation vehicles, new car pollution can be self-priming since the row, working speed, large capacity, transportation is convenient, applicable to collect feces, mud, oil and other liquid material transport. Sewage suction truck using domestic technology led to the pollution of vacuum pump, the suction, suction cjay, especially suitable for the drain suction of warp, the loading and unloading, especially can suck a drain mud, mud, stones, bricks and other large objects. Sewage suction truck dedicated by taking power device, a transmission axis, a vacuum sewage pump, pressure tanks, hydraulic parts, pipe network system, vacuum pressure gauge, dung window, hand washing device and so on, the accessory configuration high-power vacuum sewage pump and hydraulic system, a tank head die casting molding, tanks can be opened after, double top dump. The inside of the tank can be directly dumped through the back cover, with a high vacuum (more suction than the suction tank), large tonnage, high efficiency and wider use.
| Item | unit | parameter | |
| Vehicle model | Dongfeng 6×4 Sewage Suction Truck | ||
| Chassis model | DFS1251GLJ5 | ||
| Overall dimensions | mm | 9600×2490×3350 | |
| Fact cubage | L | 15000 | |
| Mass in working order | kg | Appro×11505 | |
| Body internal dimensions | mm | 6000×1800(Length×diameter) | |
| Wheel base | 4350+1300 | ||
| F/R track base | 1940/1860 | ||
| Approach/departure angle | ° | 28/15 | |
| Exhaust/kw | ml/kw | 5900/155 | |
| Max speed | km/h | 85 | |
| Tire specification | 11.00R20 | Engine type | B210-33 |
| Traction system | 6×4 | transmission | 6-speed with over drive |
| Number of axles | 3 | Electric system | 24v |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 |
| Equipment | Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) | ||
| Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment | |||
| Time for full sucktion<5min | |||
| Engine | DongFeng Cummins Environmental Protection, diesel engine,210 hp. | ||
| Production cycle | 30-35 days | ||
| Warranty | 12 month,from the date of supply | ||
If you have more question about our product, Please write to me. Good quality, low price, Excellent service. Looking forward to your any inquiry!!
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
