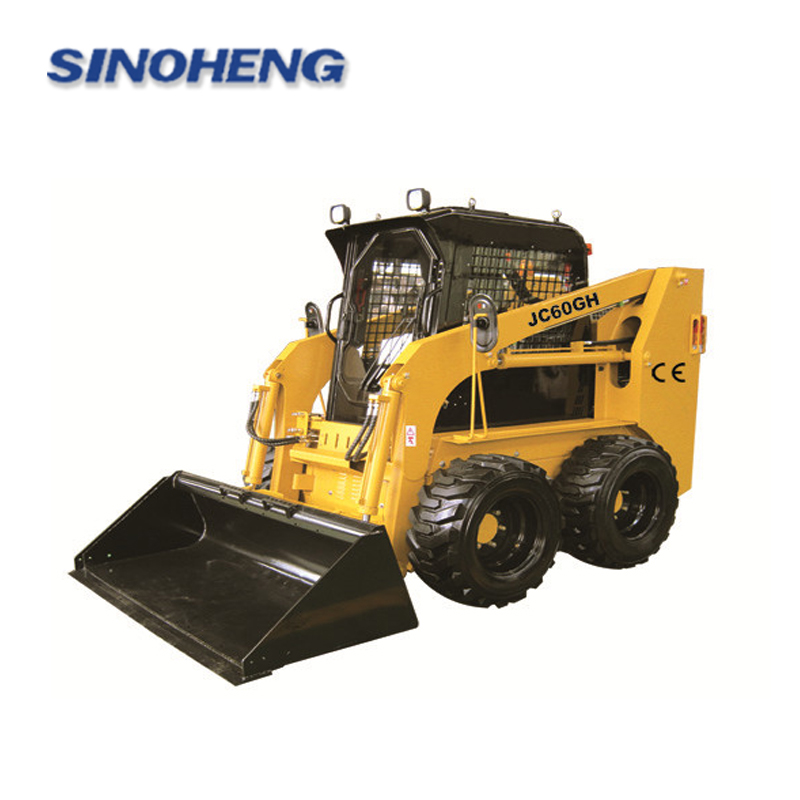

850kg JC60GH skid steer loader with CE
850kg JC60GH skid steer loader with CE
Product features:
1.The side transmission of this product adopts special gear transmission system, which is the only one in China.The drive motor adopts high-speed plunger motor and gear reducer system with high strength and long life.
2.The high-power diesel engine is equipped with a power box system, which can be equipped with a high-power main pump and a high-flow gear pump.The main engine can have strong traction and high flow attached system output.
| Specifications | |
| Rated operating capacity(kg) |
850 |
| Tipping load(kg) |
1700 |
| Bucket capacity(m3) |
0.45-0.5 |
| Operationg weight(kg) |
3300 |
| Max. travel speed(km/h) |
12 |
| Hydraulic pump flow(L/min) | |
| Fuel tank capacity(L) |
90 |
| Tires |
12/16.5NHS |
| Overall dimensions(mm) |
3490×1820×2150 |
| Dimensions | |
| Height at maximum extension(mm) |
4000 |
| Height to bucket hinge pin(mm) |
3100 |
| Width with bucket(mm) |
1830 |
| Track width(mm) |
1500 |
| Wheelbase(mm) |
1085 |
| Ground clearance(mm) |
200 |
| Dump angle |
30° |
| Dumping height(mm) |
2400 |
| Rollback at ground |
26° |
| Angle of departure |
20° |
| Engine | |
| Maker/Model |
Xinchai498 |
| Net power |
61.2hp/2500rpm |
| Type |
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
| Displacement(L) |
3.2 |
| Standard | |
| Deluxe enclosed operator cab | |
| Hydraulic joystick controls | |
| Standard bucket | |
| Auxiliary hydraulic couplers | |
| Optional | |
| Prehest starting assist system for extreme cold weather | |
| Cab fitted with a heater as standard | |
| Air conditioner | |
| 2-speed transmission system | |
| Attachments：Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More |
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
