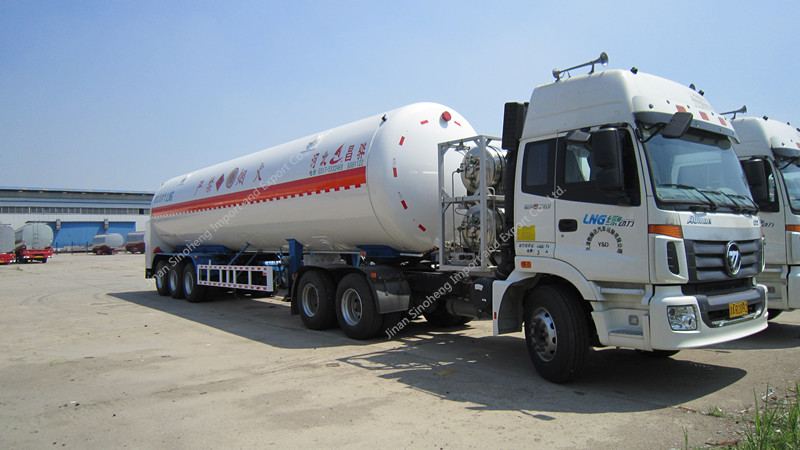

52.6M3 3 Axle Cryogenic LNG Tank With Trailer
Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . All the kinds of semi trailers ( from light loading semi trailers to heavy loading semi trailers ) , we all can customize them according to customer’s special demands ( required dimensions , loading capacity etc ) .
|
Tanker Essential Information |
|||||
|
1 |
Dimensions(length*width*height) |
13000×2500×3950×6 |
|||
|
2 |
Estimated Tare Weight |
18890KG |
|||
|
3 |
Payload |
21110KG |
|||
|
4 |
Total Weight |
40000KG |
|||
|
Shell Of Tanker |
|||||
|
1 |
Products |
Liquid Nature Gas(LNG) | |||
|
2 |
Fluid property |
Flammable |
|||
|
3 |
Design temperature |
To-196℃ inner tank |
|||
|
4 |
Design pressure |
0.68MPa inner tank | |||
|
5 |
Corrosion allowance |
0mm inner tank |
|||
|
6 |
weld joint factor |
1.0 |
|||
|
7 |
Major materials of bearing pressure |
Inner tank Tanker body : S30408 / S30408Ⅲ |
|||
|
Inner tank End plate : 30408 |
|||||
|
|
|||||
|
8 |
Filling weight per volume |
|
|||
|
9 |
Maximum filling weight |
|
|||
|
10 |
Compartments |
ONE |
|||
|
11 |
Shape |
Inner Tank Cylindricalbody with oval dish end |
|||
|
Detection |
|||||
|
1 |
Heat treatment |
|
|||
|
2 |
Flaw detection |
100% Flaw detection |
|||
|
3 |
Test PRESSURE |
0.68MPa |
|||
|
Manhole (As customer’s requirement ) |
|||||
|
1 |
Quantity |
|
|||
|
Safety Valve (As customer’s requirement ) |
|||||
|
1 |
Quantity |
TWO |
|||
|
2 |
Location |
Into the cabinet |
|||
|
3 |
Size |
DN25 |
|||
|
LEVEL G UAG E(As customer’s requirement ) MZC-ⅡA ，0-1500MM |
|||||
|
1 |
Quantity and Model |
|
|||
|
2 |
Location |
In the cabinet |
|||
|
3 |
Size |
As customer’s requirement |
|||
|
Valve and pipe Detail (As customer’s requirement ) |
|||||
|
Running System |
|||||
|
1 |
Axles |
3 |
13 TON FUWA Axles |
||
|
2 |
Suspension system |
1 |
FUWA leaf spring suspension 13*90*10 |
||
|
3 |
Wheel rim |
12 |
9.0*22.5 |
||
|
4 |
Tyre |
12 |
Brand : Triangle,12R22.5 |
||
|
5 |
Kingpin |
1 |
3.5″,bolt on ,in rubbing plate，fabricated |
||
|
6 |
Landing legs |
2 |
JOST D200 single linkage, Gear type ,28T |
||
|
Control System |
|||||
|
1 |
Emergeny Cut-off Valves |
3 |
|
||
|
2 |
Cryogenic Globe Valve |
5 |
Gas phase DJL-40D Liquid phase DJL-50D pressurize DJL-32D |
||
|
3 |
operating mode |
1 |
Mechanical and pneumatic |
||
|
4 |
Liquid gauge |
1 |
MZC-ⅡA ，0-1500MM |
||
|
5 |
2 |
YTN-100T 0—1.6MPa LEVEL 1.6 |
|||
|
Pneumatic Brake System |
|||||
|
1 |
Spring brake chamber |
6 |
FUWA |
||
|
2 |
Air connector |
2 |
FUWA |
||
|
3 |
Relay Valve |
2 |
DAY-25 set-pressure 0.72MPA |
||
|
4 |
ABS |
1 |
ABS |
||
|
Electronical System |
|||||
|
1 |
7-Pin Socket |
1 |
24V 7-pin socket |
||
|
2 |
LED Lamp |
1 |
All kinds of lamp |
||
|
3 |
Cable |
1 |
Stander cable |
||
|
Accessories |
|||||
|
1 |
Small Tool box |
1 |
|
||
|
2 |
Wheel carrier |
2 |
|
||
|
3 |
Fire extinguisher |
2 |
8kg With red box |
||
|
4 |
Cabinet |
2 |
|
||
|
5 |
Steel fender |
6 |
|
||
|
6 |
Static conductive belt |
1 |
C shape |
||
|
7 |
Impeller blasting |
1 |
Completely |
||
|
8 |
Paint |
1 |
As customer requirements |
||
| TERMS | |||||
|
1 |
Payment terms: 30%TT in advance,the balance should be paid against the copy of B/L.Or L/C at sight.(BY T/T or L/C) |
||||
|
2 |
Terms of delivery: in 30 days after the seller received 30% advance payment (try deliver the goods as soon as possible) |
||||
|
3 |
PORT:Tianjin or Qingdao or Shanghai |
||||
|
4 |
MOQ: one unit |
||||
If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
