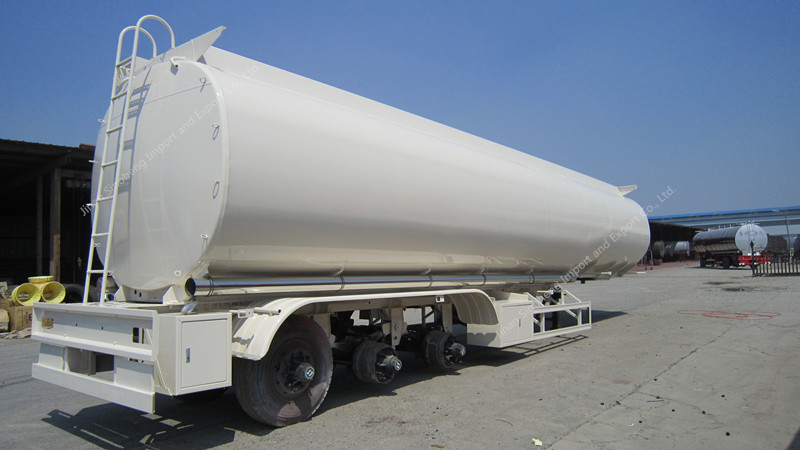

29600L Liquid CO2 Semi Trailer Tanker Transport Tank
Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . All the kinds of semi trailers ( from light loading semi trailers to heavy loading semi trailers ) , we all can customize them according to customer’s special demands ( required dimensions , loading capacity etc ) .
|
Tanker Essential Information |
||
| Dimensions(length*width*height) | （13000×2500×3620×14）mm | |
| Estimated Tare Weigh （Curb Weight） | 13360kgs | |
| Payload | 26640kgs | |
| Total Weight | 40000kgs | |
| Tank Volume | 29.6 m3 | |
| Traction pin height from the ground | 1320mm | |
| Shell Of Tanker | ||
| Filling medium | Liquid Co2 | |
| Fluid property | Liquid | |
| Design temperature | ·-40℃ | |
| Design pressure | 2.3MPa | |
| Corrosion allowance | 1.0mm | |
| Major materials of bearing pressure | Tanker body :16MnDR , 12mm GB713 | |
| End plate : 16MnDR , 14mm GB713 | ||
| Main Beam : AG700 | ||
| Shape | round | |
| Compartments | Single | |
| Filling weight per volume | 29.6m3 | |
| Weld joint factor | 1.0 mm | |
| Detection | ||
| Pressure test | 2.65MPa | |
| Gas-tight test pressure | 2.3MPa | |
| control system | ||
| Safety Valve | 2set ,DAY-25 2.45MPa | |
| Low-temperature shut-off valve | 5sets DJS-50A | |
| emergency shutoff valve | 2 sets QGJ43F-25-8 & QGJ43F-25-7 | |
| Ball Valves | 2 sets Q41F-25P-9 & Q41F-25P-8 | |
| liquidometer | 1set 0-2000mm MZC-ⅡA | |
| indicating pressure gauge | 1 set YTN-100T 0—4.0MPa Accuracy 1.6 degree | |
| Running System | ||
| Axles | 13 TON FUWA Axles *3 unit | |
| Tyre | Double Coin 12R22.5 * 12 pieces | |
| Kingpin | 3.5″, 90# bolt on ,in rubbing plate | |
| Landing legs | FUWA 28T single linkage, Gear type * 2 piece | |
| Pneumatic Brake System | ||
| Spring brake chamber | FUWA brand * 6 pieces(4double+2single) | |
| Air connector | FUWA brand * 2 pieces | |
| Relay Valve | 1 pieces | |
| ABS | ABS 1 pieces | |
| Electronical System | ||
| 7-Pin Socket | 24V 7-pin socket one set | |
| LED Lamp led | All kinds of lamp | |
| Cable | Stander cable 1 set | |
| Accessories | ||
| Wheel carrier | 2 | |
| Fire extinguisher | 2sets 8Gg | |
| Cabinet | 1 | |
| Steel fender | ||
| Static conductive belt | Model C | |
| Impeller blasting | ||
| Small Tool box | 1 | |
| Tools | Spare wheel up-down regulatorSpare tire crankLeg crank
Tire socket spanne Shaft head socket spanner |
|
| Warranty period | ||
| TERMS | ||
|
Payment terms: 30%TT in advance,the balance should be paid before loading in factory. |
||
|
Terms of delivery: in 30 days after the seller received 30% advance payment (try deliver the goods as soon as possible) |
||
|
PORT:Tianjin or Qingdao or Shanghai |
||
If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
